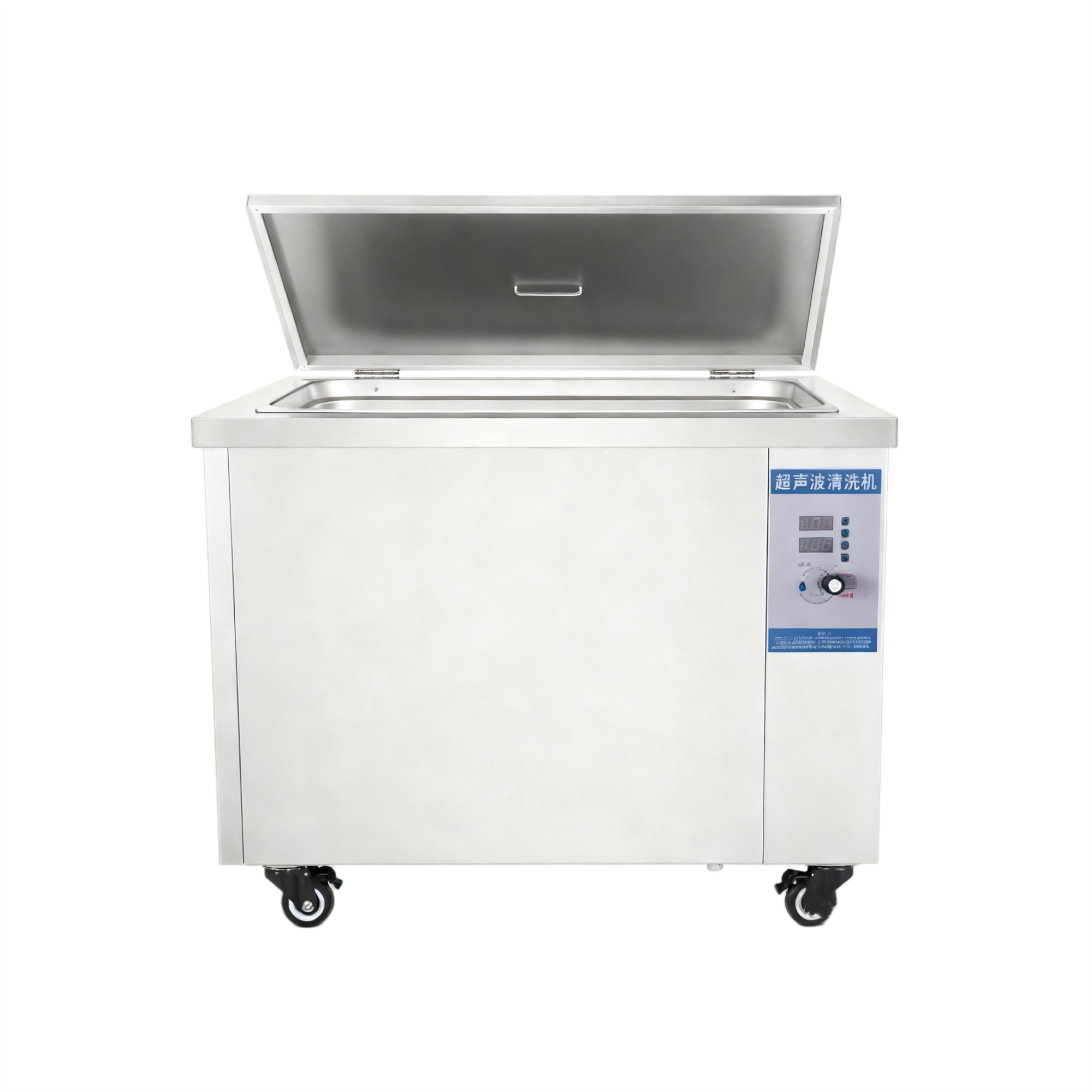

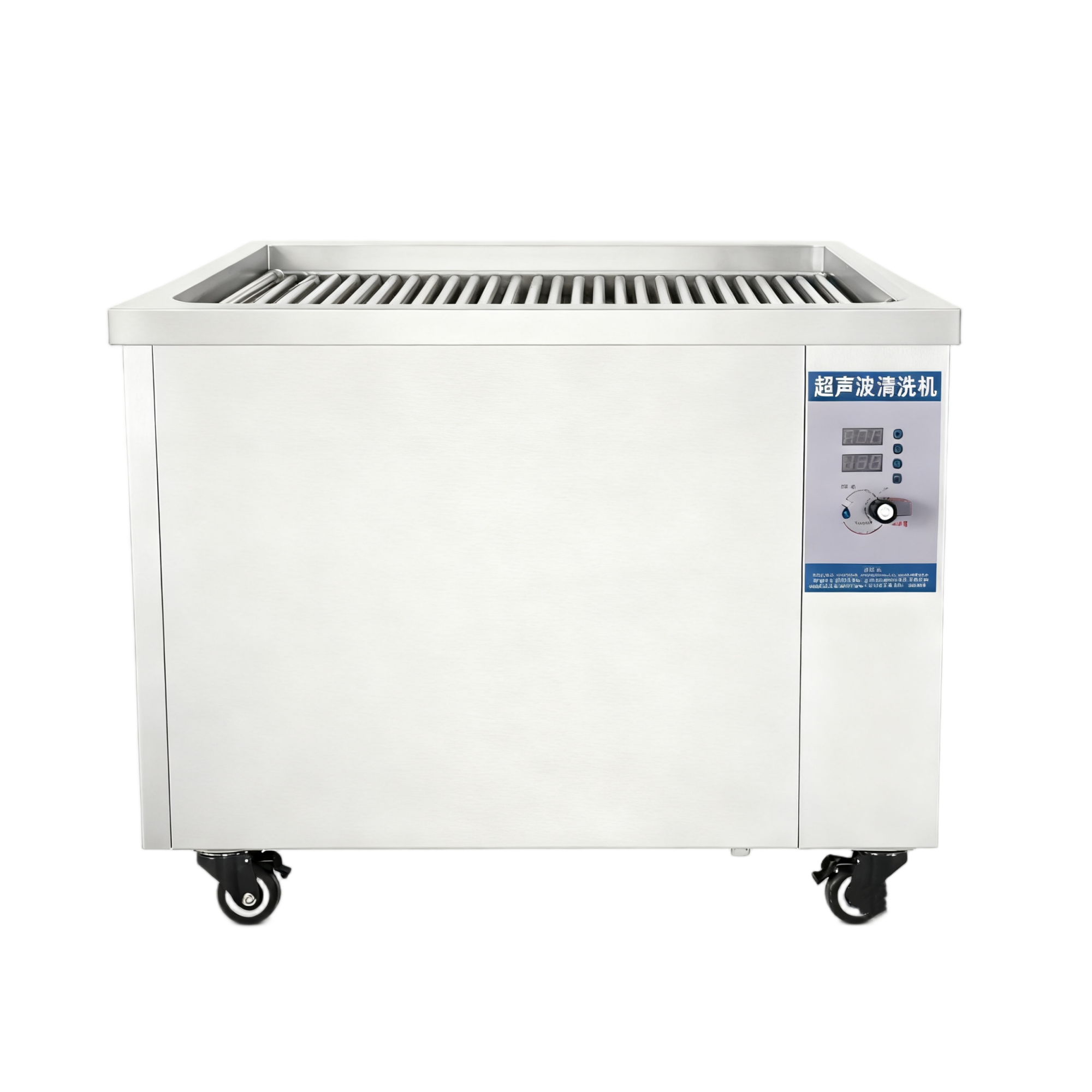

Single-tank ultrasonic cleaning machine
Product Introduction
The single-tank ultrasonic cleaner is a compact cleaning device, suitable for removing contaminants such as oil stains, dust, and polishing paste. It utilizes the cavitation effect of high-frequency ultrasonic waves to achieve efficient cleaning of precision parts, electronic components, laboratory equipment, etc. It features easy operation, excellent cleaning effect, energy conservation, and environmental protection. Compared with manual cleaning or spray cleaning, its cleaning efficiency is increased by 30% to 50%, and it can prevent the surface of items from being scratched. It is especially suitable for cleaning precision parts and complex structural parts.
It is widely applied in industrial manufacturing (such as electronics, hardware), medical disinfection, optics, jewelry and ornament industries, scientific research experiments and other scenarios.
Core advantages：
- Cleaning without blind spots: Ultrasonic waves can penetrate complex structures and effectively remove stubborn dirt such as oil stains, dust, and oxides in crevices and grooves. It is especially suitable for cleaning the pins of electronic components and the threads of hardware parts.
- Gentle protection: No manual wiping is required, avoiding damage to precision parts (such as optical lenses, jewelry surfaces) caused by mechanical friction. The surface smoothness of the items remains unaffected after cleaning.
- Intelligent and convenient: Equipped with a digital control panel, it can precisely adjust the ultrasonic power (50%-100%), heating temperature (room temperature -80℃), and cleaning time (0-60 minutes), meeting different cleaning requirements. Some models support timed start and stop functions to enhance operational efficiency.
- Safety Assurance: Equipped with built-in leakage protection, overload protection and liquid-free dry-burning protection devices, it will automatically shut down when the cleaning solution is insufficient or the equipment malfunctions, reducing safety risks. The body is made of waterproof and insulating materials, further enhancing the safety of use.
Product Specification
| Product Model | SF-30 | SF-61 | SF-108 |
| Tank Volume | 30L | 61L | 108L |
Ultrasonic Frequency | 600W | 900W | 1500W |
Heating Frequency | 0.5KW（可选） | 2KW（可选） | 3KW |
| Frequency | 28kHZ/40kHZ/68kHZ | 28kHZ/40kHZ/68kHZ | 28kHZ/40kHZ/68kHZ |
| Material | SUS304/SUS316 | SUS304/SUS316 | SUS304/SUS316 |
| Power | AC220V 50Hz | AC220V 50Hz | AC220V 50Hz |
| Machine Weight | 35KG | 65KG | 110KG |
This equipment can be designed, developed and manufactured according to different product specifications and production capacities.
